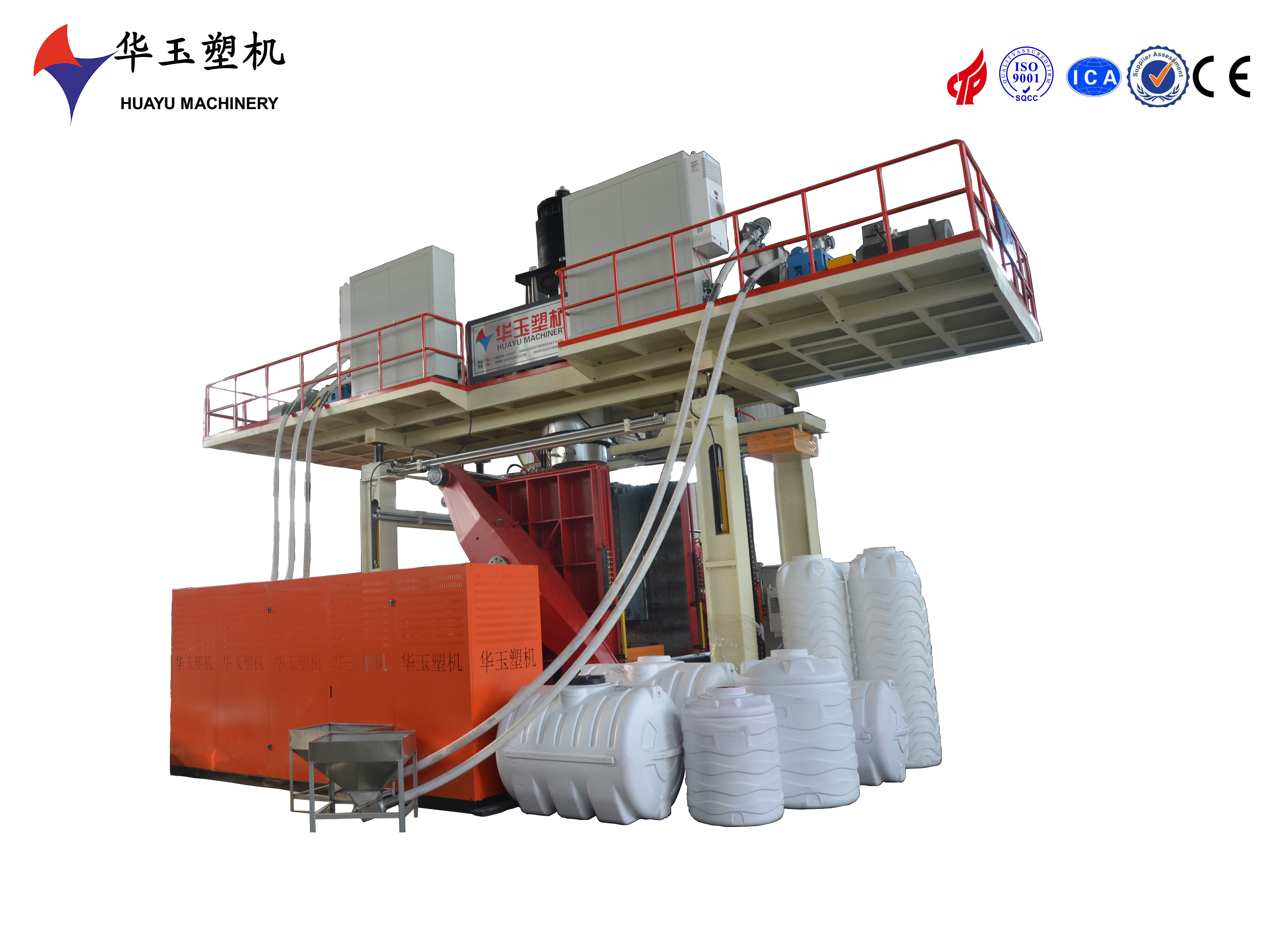

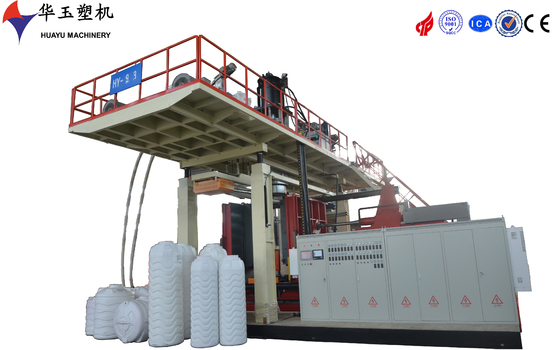

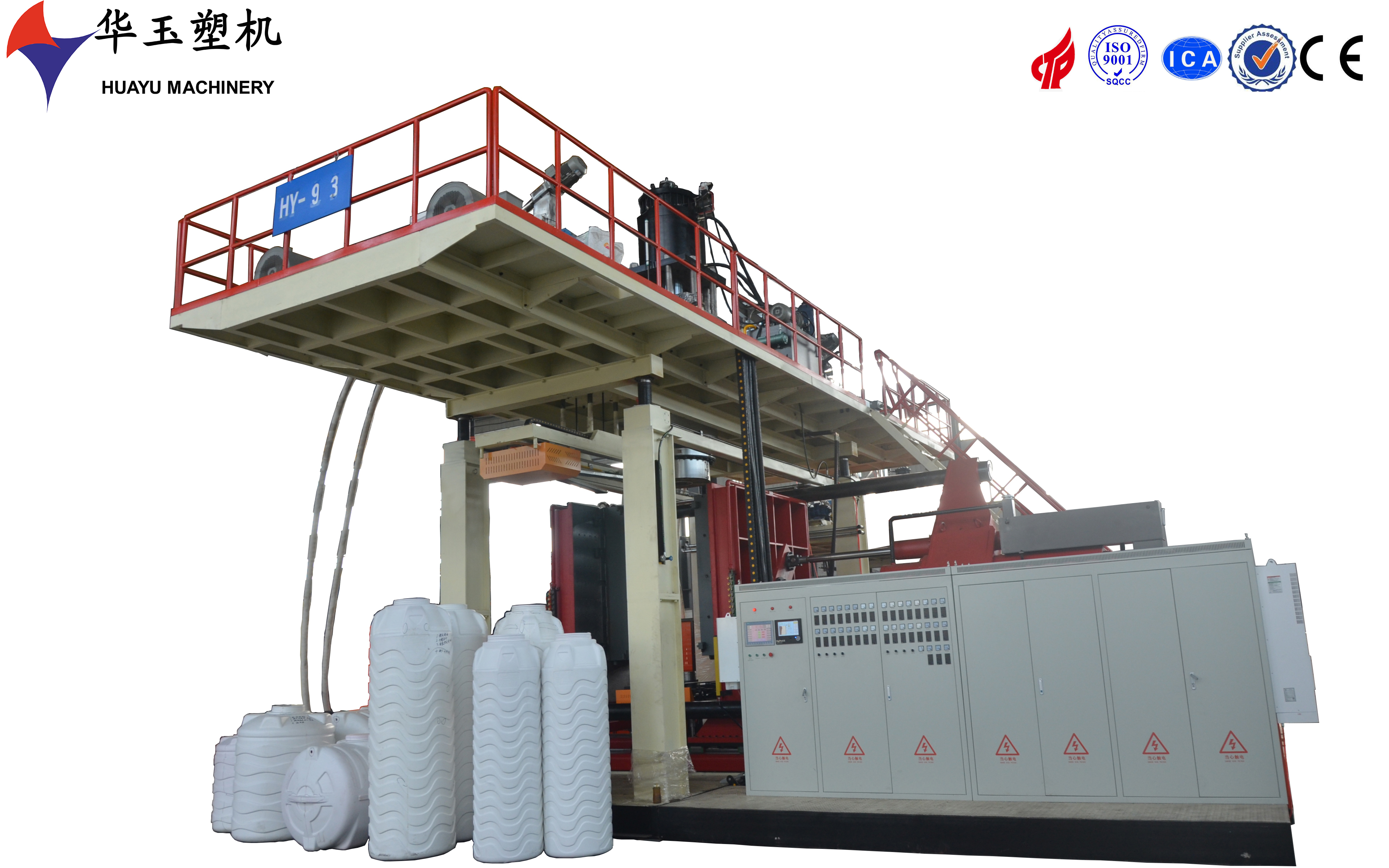

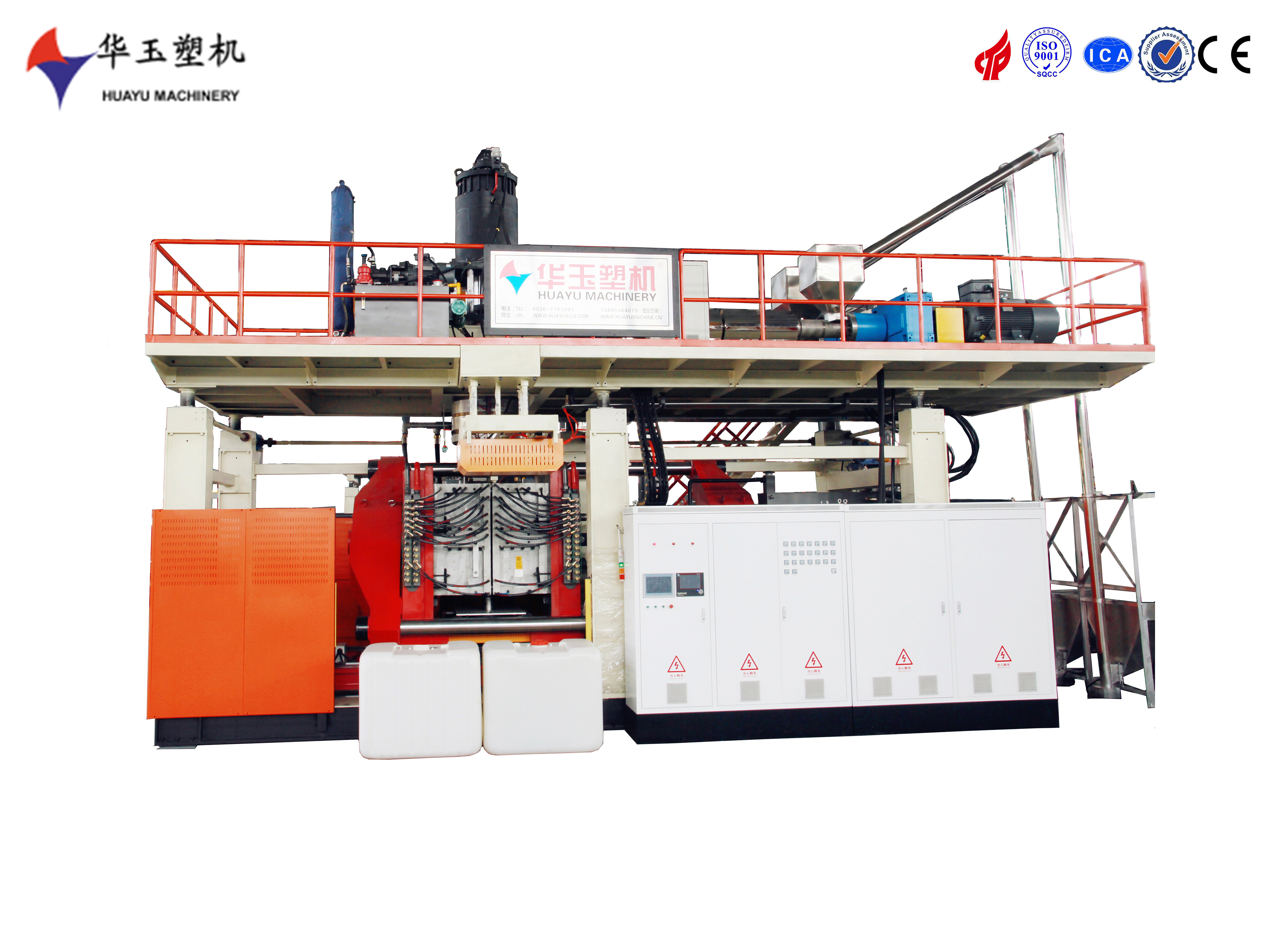

2000L 4-Layer Large Heavy-Duty Water Tank Blow Molding Machine

Nguồn gốc Trung Quốc
Hàng hiệu HUAYU
Chứng nhận ISO9001 CE
Số mô hình HYBM2000-4
Số lượng đặt hàng tối thiểu 1 bộ
Giá bán 240000 USD
chi tiết đóng gói được tháo rời thành nhiều bộ phận để vận chuyển container
Thời gian giao hàng 4 tháng
Điều khoản thanh toán L/C, T/T.
Khả năng cung cấp 1SET 120 ngày

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Dung tích 500-1000 lít Các ngành công nghiệp áp dụng Khác
Kiểu thổi ép đùn thổi Hệ điều hành Bán tự động
kiểm soát Parison MOOG 200 điểm Max. Kích thước khuôn 1200x1000mm
công tắc không khí Schneider Tổng công suất 560KW
Năng lực sản xuất 50-60 mảnh/giờ Phương pháp làm sạch Dễ Dàng Vệ Sinh
trục lăn 1700*1800 Người điều khiển Màn hình plc+cảm ứng
Kích thước máy 15*9*12 Loại máy ép đùn thổi
Bảo hành 1 năm
Làm nổi bật

2000L water tank blow molding machine

,

4-layer heavy-duty blow molding machine

,

large water tank molding machine with warranty

Bạn có thể đánh dấu vào các sản phẩm bạn cần và liên lạc với chúng tôi trong bảng tin.
Để lại lời nhắn
Mô tả sản phẩm

This 2000L four-layer heavy-duty blow molding machine is designed for producing ultra-high-performance multi-layer plastic products. The quad-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, and superior mechanical strength. The heavy-duty water tank cooling system ensures efficient heat dissipation and maintains optimal operating temperatures, enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, multi-layer plastic products. The water tank system is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

 Clamping  System

platen size

1900*2000*60mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

200+280*2



clamping cylinder stroke

2000mm



clamping force

1800KN



stance between platens

1000-3000mm



max. mould size

1600*2000mm(W*H)



 blowing and cooling system

stretching stroke

according to products



blow pin up/down stroke

600mm



air seat stroke

400mm



maximum air pressure

0.8Mpa



onsumption

2.3m3/min



Cooling method

Circulating water



Water pressure

0.3MPa



Cooling water consumption

60m3/h
