2000L 3-Layer Large Heavy-Duty Water Tank Blow Molding Machine

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.
xÁp suất không khí | 0,8MPa | Đầu ra | 450Kg/giờ |
---|---|---|---|
Động cơ servo | 57KW | Năng lượng sưởi ấm | 60kw |
Kiểu | Máy tạo hình hơi | Mức độ tự động hóa | Hoàn toàn tự động |
Hệ thống làm mát | Làm mát nước | Dung tích | 500-1000 lít |
Điểm bán hàng chính | Thời gian sử dụng dài, dễ vận hành | Tự động hóa | Tự động |
Phạm vi sản phẩm | Chai nhựa Jerrycan | Năm | 2024 |
Lớp | 3 lớp | chết đầu | 26T |
Nhựa xử lý | PE,HDPE | ||
Làm nổi bật | 2000L water tank blow molding machine,heavy-duty water tank molding machine,3-layer water tank blow molder |

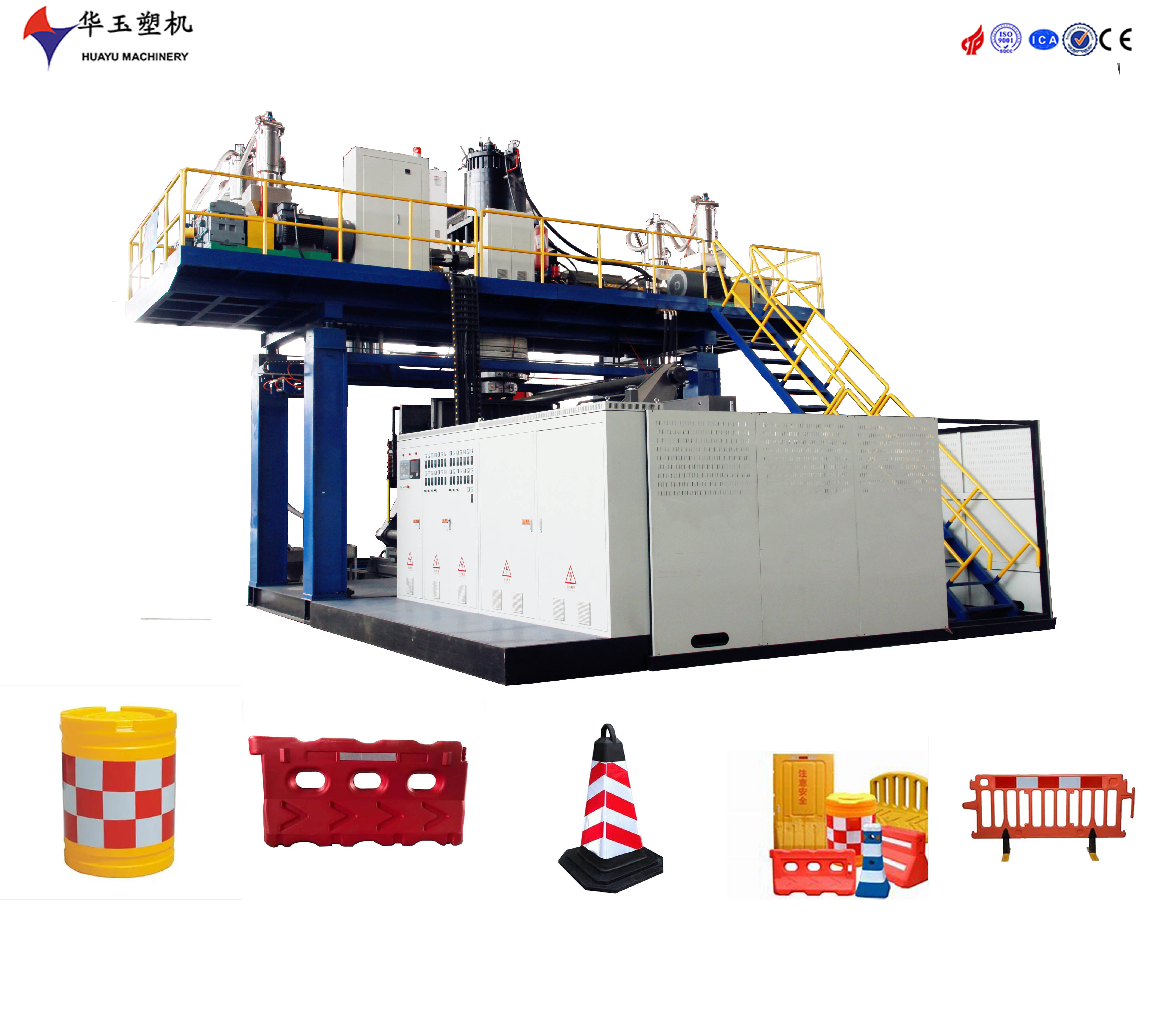

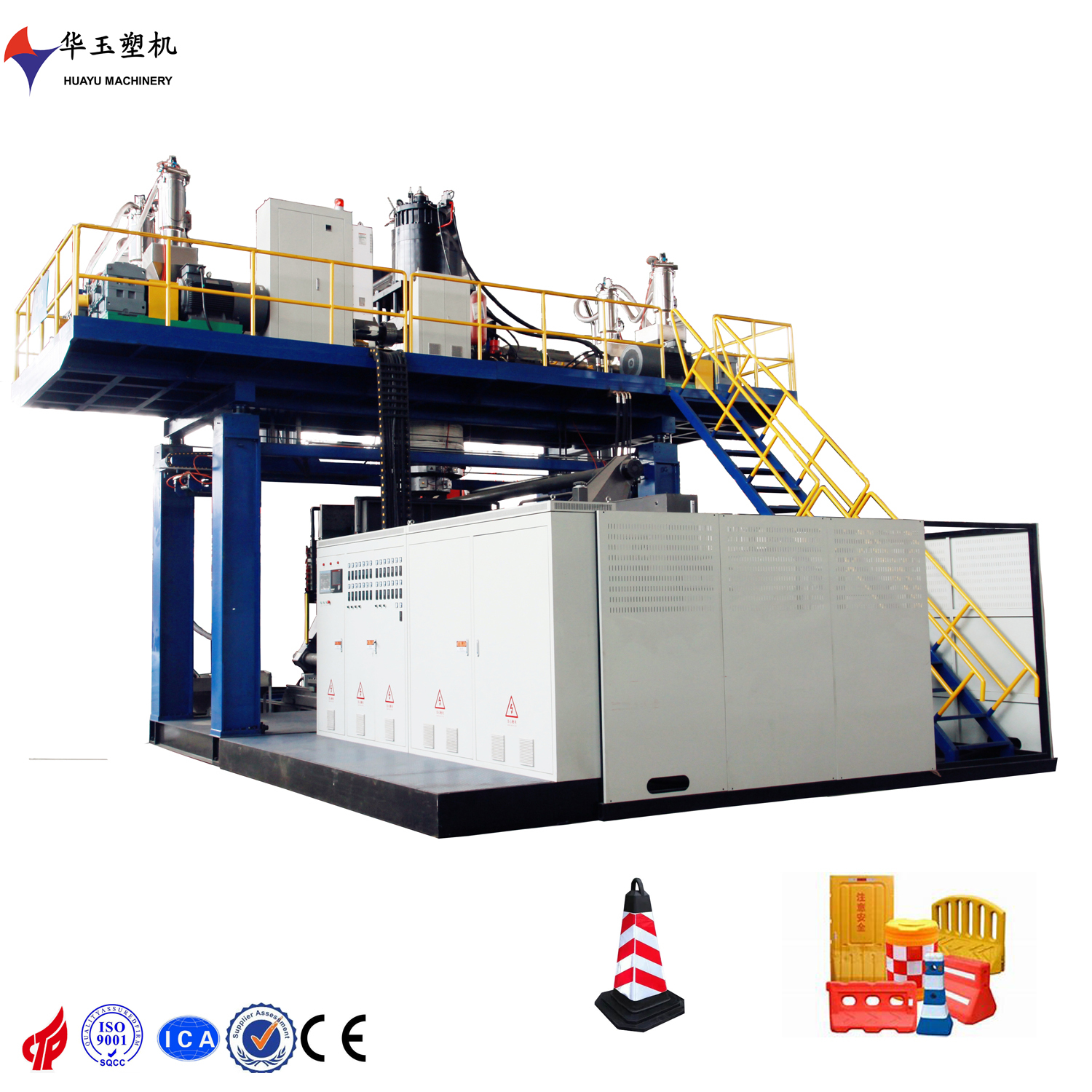

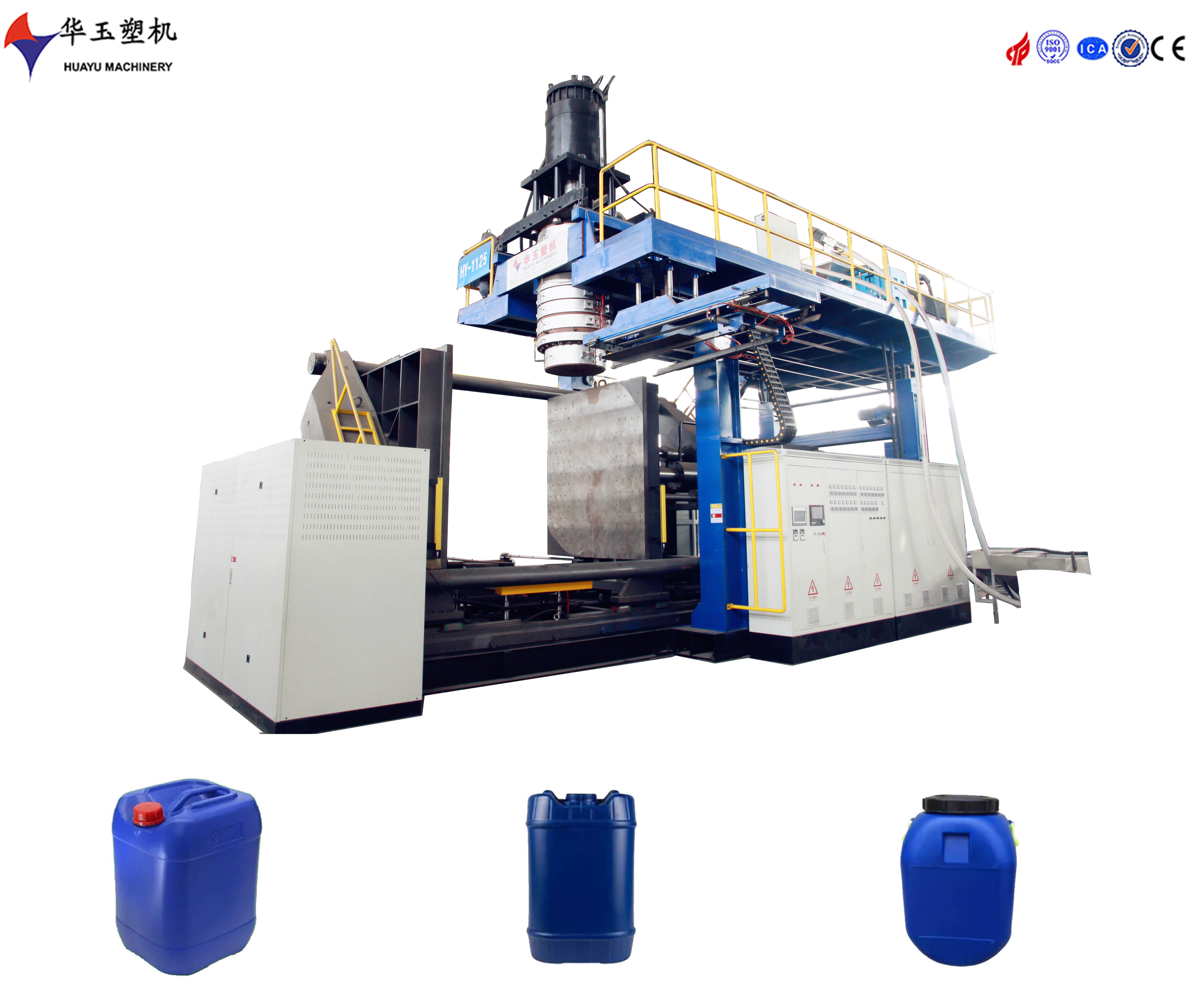

This 2000L three-layer heavy-duty blow molding machine is designed for producing high-performance multi-layer plastic products. The triple-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties and improved product durability. The heavy-duty water tank cooling system ensures efficient heat dissipation and maintains optimal operating temperatures, enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, multi-layer plastic products. The water tank system is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
die head |
||
Accumulator capacity |
60kg |
designed by ourselves and get the patent |
Die diameter |
According to products |
|
Die head heating power |
60kw |
|
Clamping System |
||
platen size |
1900*2000*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
clamping cylinder |
200+280*2 |
|
clamping cylinder stroke |
2000mm |
|
clamping force |
1800KN |
|
distance between platens |
1000-3000mm |
|
Max. mould size |
1600*2000mm(W*H) |
|
